PAP 1300
 |

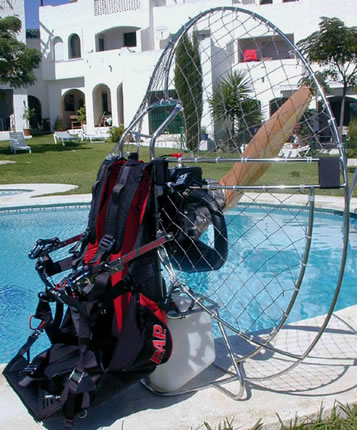

PAP 1300 TOP 80 - Built on the base of the 1100, this size has a 1,30 mt diameter chassis and a blade of 115 cms which increases its thrust reducing its noise level and without penalizing the weight; 1000 gr. more which makes 23 kg.
|
The PAP 1300TD comes with prop covers, the TDL comes with the transport bag and tiny tach.
Model |
1300TD |
1300TDL |
Engine |
Top 80 cc single cylinder
2 stroke developing 14 HP at 9,500rpm Magneto ignition / Walbro / Tillotson
diaphragm pump carb. |
|
Thurst |
± 50kg. |
|
Max Pilot Weight |
90kgs |
|
Duration |
2 to 4½ hours
depending upon type of wing, pilot weight and flying style. |
|
Starting System |
Hand and foot start (Aerial
restarting enabled). |
|
Reduction Drive |
Enclosed with helical
gears, integral automatic clutch. Ratio 1 / 3.75 |
|
Fuel |
Four star premix 2 stroke
at 50 / 1 ratio using synthetic oil. 8.5 litres tank |
|
Prop |
115 cm / 45" x 24" |
|
Frame |
Splits into three parts.
Manufactured using round section stainless steel tube and Tig welded.
|
|
Harness |
Special Sup'Air manufacture
incorporating the Active System, side pockets, back padding, seat extension,
accelerator guides, quick buckles. |
|
Weight Dry |
23 kg. |
|
Transport Bag |
£180 When supplied with order.
|
Included |
Tacho |
£58 When supplied with order. |
Included |
Price |
£2818 |
£3025 |
To order call 01663 747513 or e-mail
